Rieter Draw Frame Special Parts / Components

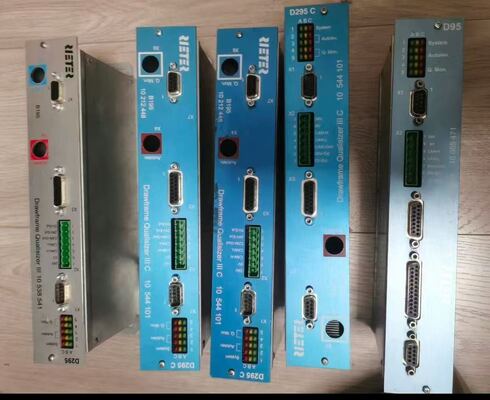

original Rieter D295 QUALISIZER IIIC control board, Part Number 10 538 541, for our RSB-D40 draw frame

• D295C DRAWFRAME QUALISIZER IIIC 10 544 101
• D95     10085471
• D295   DRAWFRAME QUALISIZER IIIC 10 538 541

Basic Information:

Part Number: 10 538 541

Englishe Desp:QUALISIZER IIIC / Drawframe Qualisizer III

Model :D295 ( D295C)

For RS-D30, RSB-D40, RSB-D45, D195, D295, D295C

Technical Positioning & Functions;

Digital Signal Processing Board For Autolevelling System

These sensors are directly connected with the digital signal processor D295 which calculates the speed of the SERVOdrive for auto levelling

1. Digital Signal Processing (DSP)
2. Levelling Action Point (LAP) Calculation


3. SERVOdrive Speed Control
4. Sensor Data Integration
